Product description

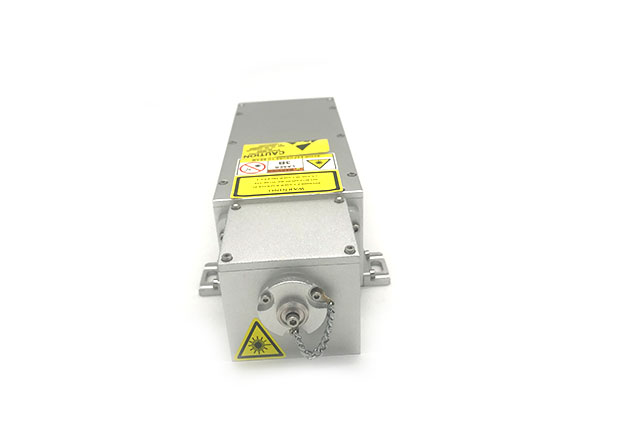

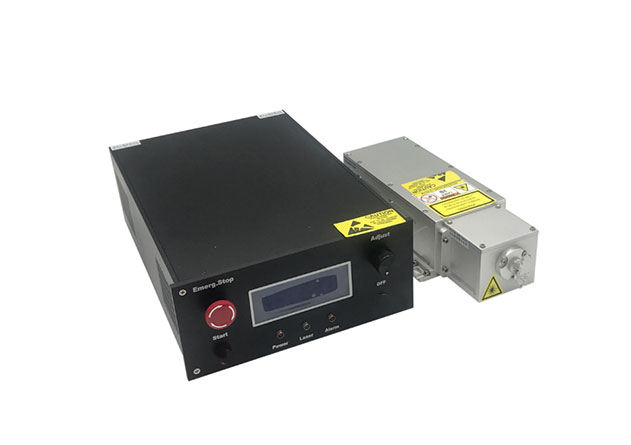

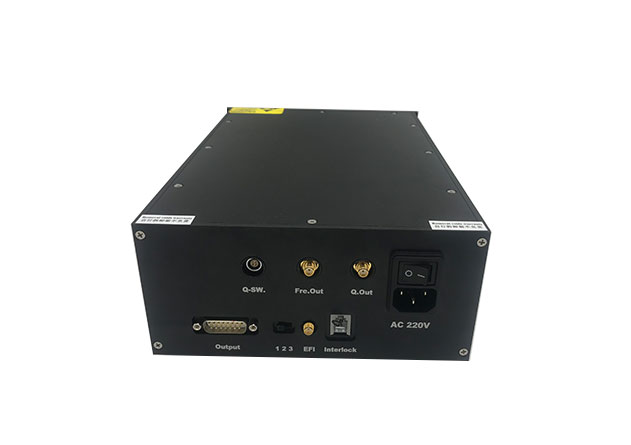

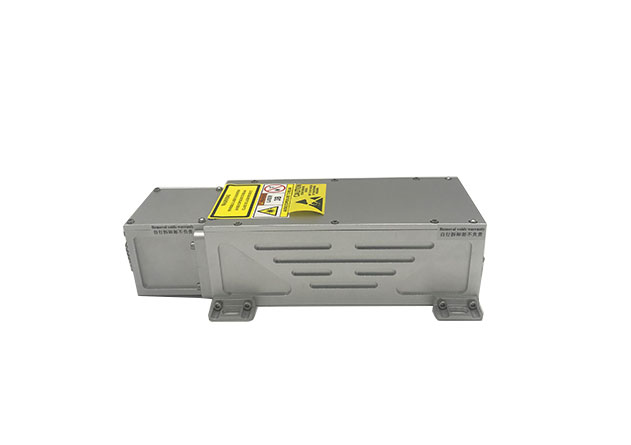

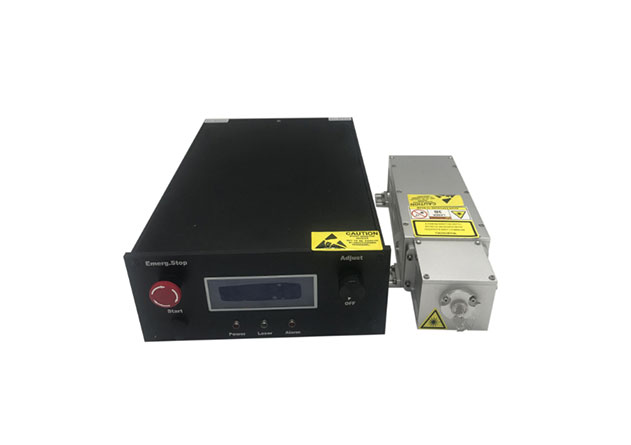

All solid state 532nm green laser is made features of ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, laser lighting show, scientific research,and so on.
SPECIFICATIONS
RN-W-532-20W | |
Model NO. | RN-W-532 |
Wavelength | 532±1nm |
Beam mode | Near TEM00 |
Operation mode | CW |
Output power (W) | 20 |
M2 factor | 3~6 |
Polarization ratio | >50:1 |
Modulation | 1~10kHZ,TTL/Analog |
Beam size | ~4mm |
Beam divergence(full angle) | <2.0Mrad |
Power stability | 5%@4hrs |
Beam height | 94mm |
Life time | 10000hrs |
Warm up time | <10minute |
Power supply | 80～220V 50/60Hz |

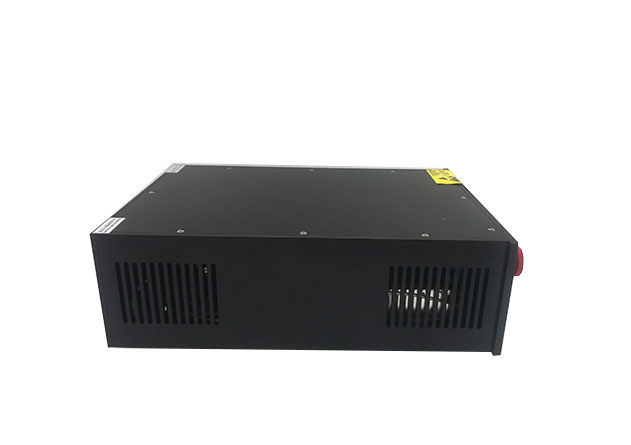

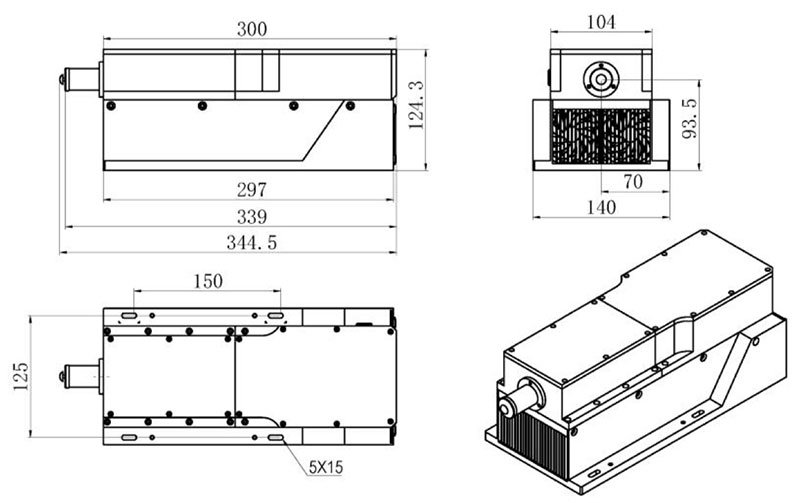

PSU size | 344.5×140×124 mm3 |
Weight of laser head | 5kg |
Laser head size | 307×168×123 mm3 |
Weight of power supply | 4kg |
Warranty time | 1year |
