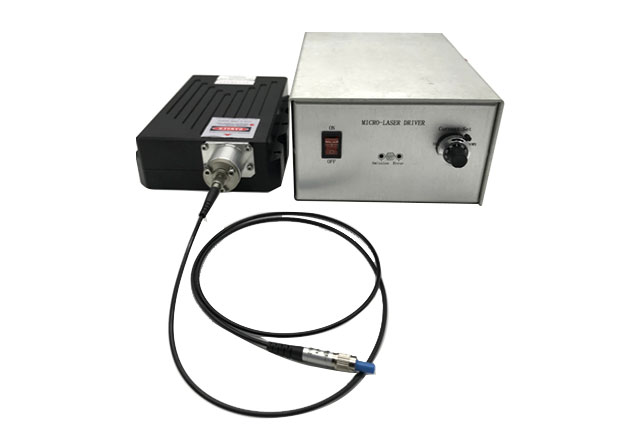

589nm semiconductor pumped all solid stateYellow laser is a laser produced by Beijing Yanbang Technology Co., Ltd.,Suitable for scientific experiments, optical sensors, measuring instruments, communications, spectrum analysis, laser lights and laser displays, etc.The complete set contains laser head, laser power supply and power cord.
Product features:
1. High beam quality and adjustable power.
2. Original imported LD, reliable performance, service life of 10,000 hours.
3. The power supply comes with overheating, LED display, current-limiting protection circuit, and can be connected with TTL or analog modulation.
Datasheet
Wavelength(nm) | 589±2 |
Laser Model | RN-W |
Output Power(mW) | 10,20,70,100...1000 |
Beam Mode | Near TEM00 |
Working Mode | CW |
Power stability(rms,8hours) | <3%,<5%,<10% |
Warm time(minutes) | <10 |
Beam Diameter(mm) | ~3.0 |
Beam Divergence, full angel(mrad) | <2 |
Operating temperature(℃) | 10~35 |
Laser head size (mm) | 250*100*94（mm） |
Power supply size（mm） | 277*145*106 |
Modulation frequency(kHz) | TTL+Fang Bo：<20khz |
Expected lifetime(hours) | 10000 |
Warranty Time | 1 year |
